Key Information:
Burst Pressure Accuracy: ±5% (Optimized control within industry standard limits)
Applicable Temperature Range: -196°C to 600°C
Maximum Design Pressure: ≥10 MPa
Service Life: ≥100,000 pressure cycles
Industry Clients Served: 2000+
Export Destinations: 100+

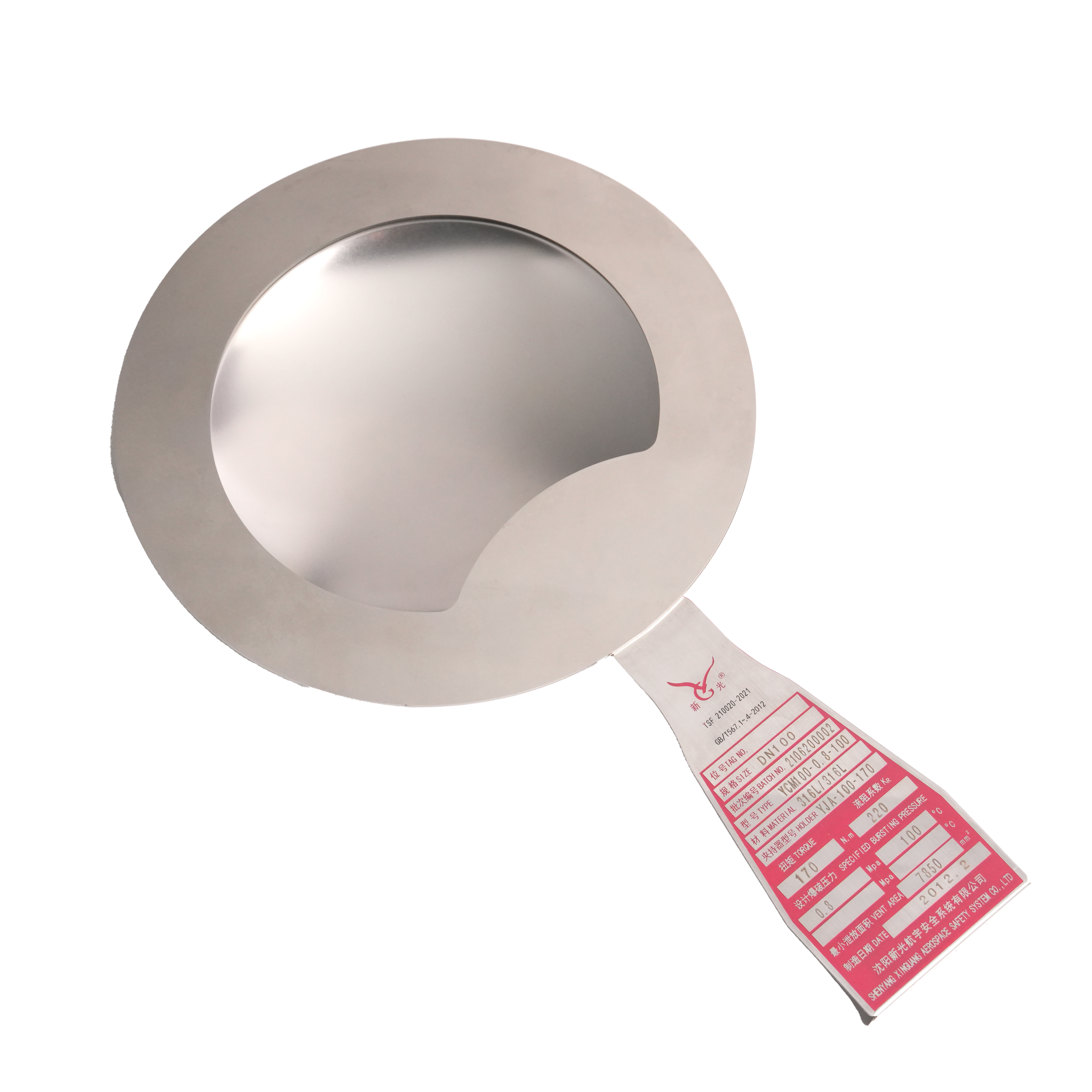

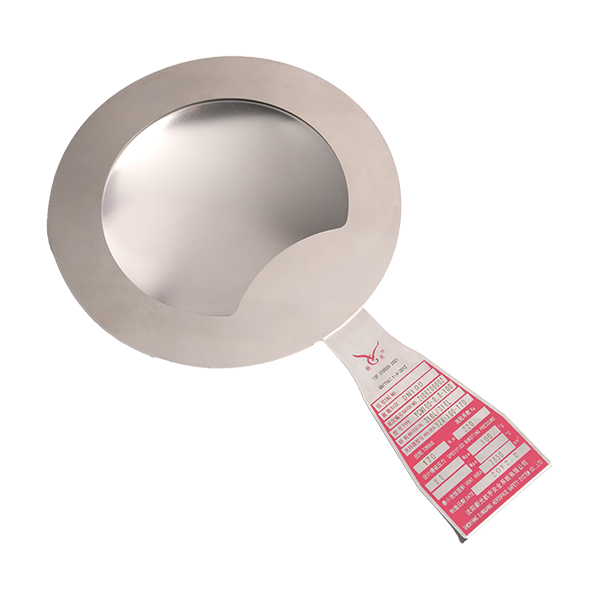

Introduction of Reverse arch groove type bursting disc:
YCM bursting disc is a safety device specially designed to protect pressure-bearing equipment. There may be a reverse arch type bursting disc with a horseshoe groove at the clamping surface and the clamping diameter. When overpressure occurs, the arch shell loses stability and flips, and the bursting disc ruptures along the weak groove. It can be used with YJM, YJA ordinary type and pre-tightening type clamps.
Features of Reverse arch groove type bursting disc:
1. YCM High quality Reverse arch bursting disc adopts a fragment-free design and can be used in series with a safety valve.
2. YCM High quality Reverse arch bursting disc has strong fatigue resistance and can be used in situations with pulsating pressure.
3. YCM High quality Reverse arch bursting disc can withstand a complete vacuum state.
4. YCM High quality Reverse arch bursting disc can be used for liquid and gaseous media.
5. The maximum working pressure of YCM High quality Reverse arch bursting disc can reach 90% of the minimum allowable bursting pressure.
Drawing upon Xinguang's extensive practical application experience across multiple industries, this type of rupture disc has been widely adopted in a diverse range of high-demand pressure systems. In the petrochemical sector, our products are currently utilized for overpressure protection in reaction vessels, storage tanks, and pipeline systems. Furthermore, in the fields of fine chemicals and powder conveying systems, Xinguang's rupture discs have consistently demonstrated exceptional performance, leading to frequent repeat orders from satisfied clients.

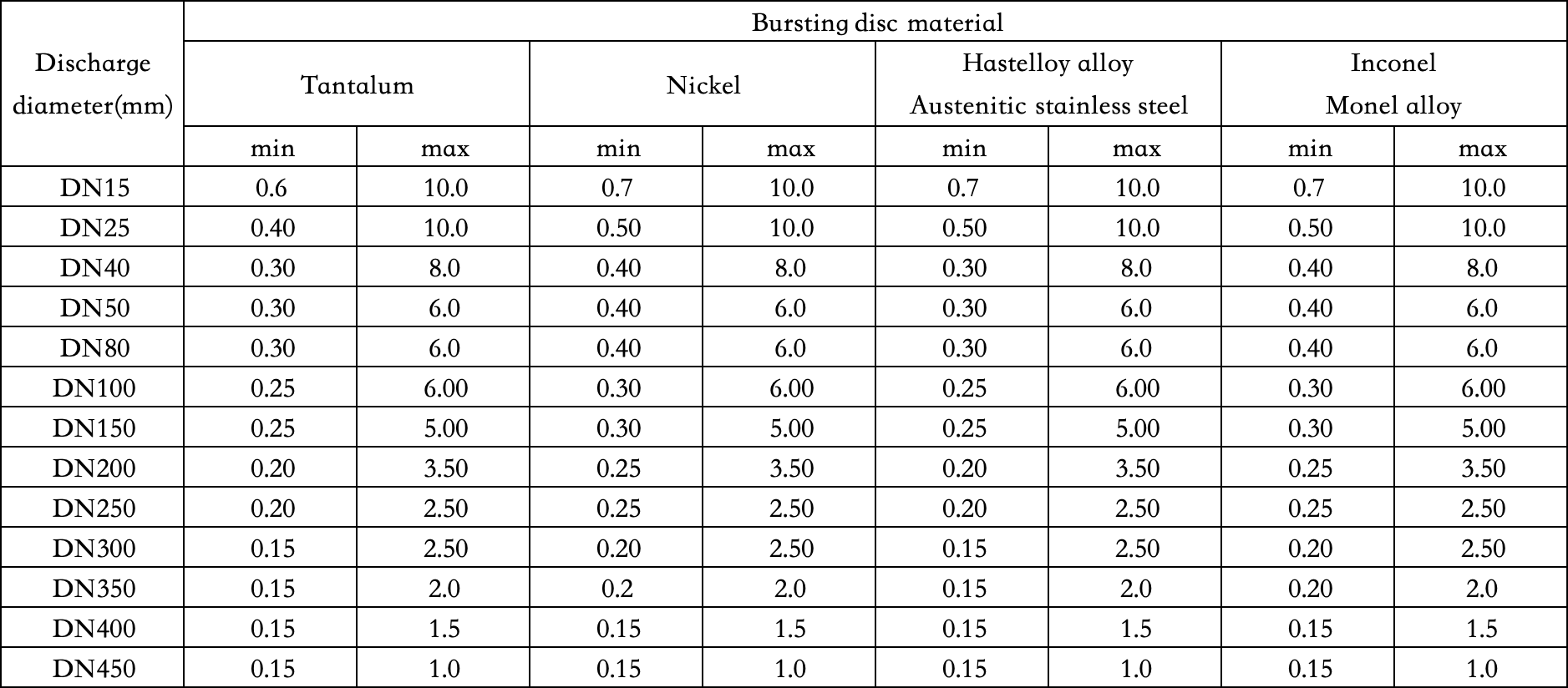

Parameters of Reverse arch groove type bursting disc:
Application of High quality Reverse arch bursting disc:
1. High-pressure reaction vessel: protect equipment such as polymerization reactors and hydrogenation reactors to prevent overpressure explosion.
2. Storage tank safety: prevent pressure accumulation in storage tanks due to temperature changes or operational errors.
3. Oil and gas production: used for wellhead devices, separators and compressor units to deal with blowouts or pressure fluctuations.
4. Thermal power/nuclear power: protect steam generators, boiler systems or nuclear waste treatment equipment to avoid overheating and overpressure.
5. Food processing: used for high-pressure sterilization equipment or filling lines for liquid foods (such as beverages and dairy products).
Quality Management:
Xinguang has established a comprehensive quality control system that encompasses raw materials, production processes, and finished product inspection. Drawing upon extensive manufacturing experience and accumulated technical expertise, the company continuously optimizes its quality management procedures to ensure its products maintain a high standard of stability and consistency. Through rigorous testing and quality control measures, Xinguang’s products have reliably served markets in over 100 countries worldwide and have been validated through practical application by more than 2,000 clients.
FAQ:
Q1: How do I select the appropriate bursting pressure?
We recommend calculating this based on the system's design pressure and safety factor, while also making adjustments based on actual operating conditions (temperature, media). We are available to provide selection assistance.
Q2: Do you offer customization?
Yes. We can manufacture custom products based on the pressure, dimensions, and flange standards provided by the customer.
Q3: What is the product lead time?
For standard models, the lead time is 7–15 days; for customized products, it depends on the complexity of the design.
Q4: Do you provide inspection reports?
We can provide factory inspection reports and relevant test data.

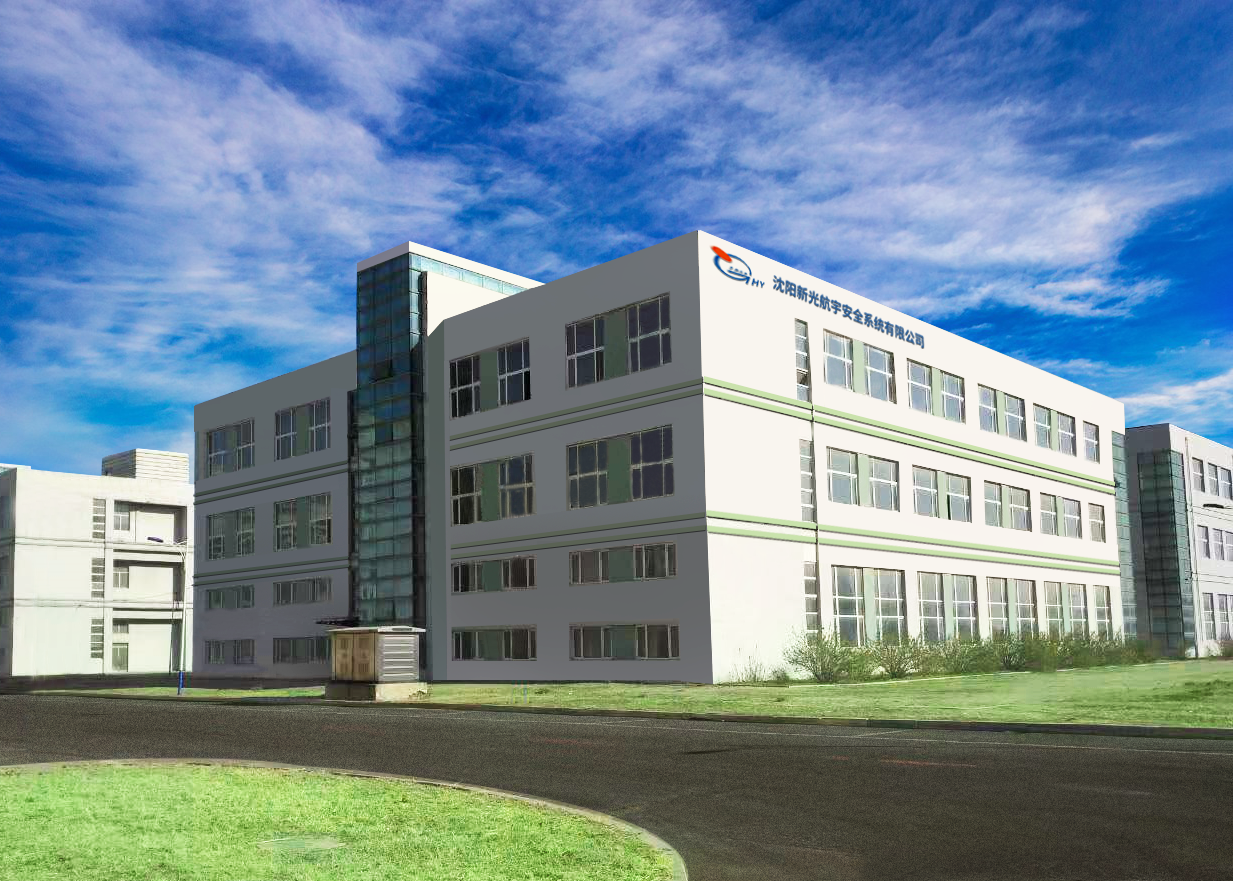

About us:
Shenyang Xinguang Aerospace Safety Systems Co., Ltd. is the first professional manufacturer of bursting disc safety devices integrating R&D, production, sales and service since the founding of New China. Over the past 60 years since its establishment, the company has always adhered to high standards and high requirements, accurately controlled design solutions and material selection, and now has more than 30 independent intellectual property rights, successfully helping many Chinese companies to realize the localization of bursting disc devices. Participated in the formulation of many national standards and industry standards for blasting, and obtained the European CE system certificate and ASME UD system certification in 2022. The company's products are widely used in many fields and have won the praise of users.
