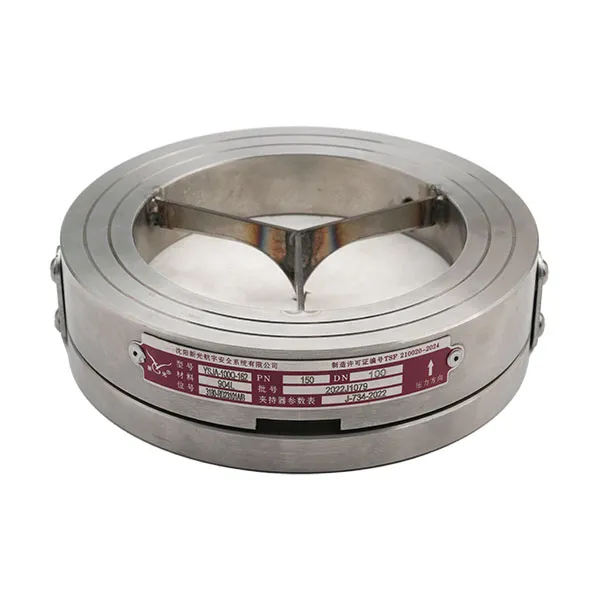

What is a reverse dome rupture disc holder?
A reverse dome rupture disc holder is a fixture used for blasting operations, mainly used to install and fix rupture discs. The structure usually includes a clamping mechanism, a supporting mechanism, and a rotating mechanism, which play the role of clamping, supporting and positioning during the blasting process, allowing the rupture disc to work safely and effectively when high pressure is released.
How to use the reverse dome rupture disc holder?
1. Install the rupture disc holder.
First, when using the rupture disc holder, you need to install it first. When installing, pay attention to the following points:
(1) Install the holder on a solid mounting frame;
(2) Use strong connectors between the holder and the mounting frame;
(3) The holder on the ground should be fastened to the foundation at the same time;
(4) When loading the rupture disc into the holder, ensure that its geometric center position is consistent with the rotation center position of the holder.
2. Debug the reverse dome rupture disc holder.
After installing the rupture disc holder, you need to debug it. When debugging, pay attention to the following points:
(1) Adjust the clamping force: Make sure that the clamping force is sufficient, but not too much to damage the rupture disc.
(2) Adjust the support force: The support force also needs to be appropriate to reinforce the rupture disc without affecting the clamping force.
(3) Check the rotating mechanism: Check whether the rotating mechanism is flexible and smooth. If necessary, apply lubricating oil to some of it.
3. Use the reverse dome rupture disc holder.
After installation and commissioning, you can use the rupture disc holder to load the rupture disc. When operating, pay attention to the following points:
(1) Place the rupture disc on the clamping surface of the clamp, and then press the button on the clamp to allow the clamp to clamp the rupture disc.
(2) Adjust the support rod to keep the rupture disc horizontal, and then rotate it as needed.
(3) After installing the rupture disc, make sure its position is consistent with the geometric center position of the holder before proceeding with subsequent work.
The bursting disc holder is a key component in blasting operations. During use, special attention should be paid to each link such as installation, commissioning and operation to ensure its stable performance, safety and reliability. If you have more questions about the bursting disc holder or need further information, please feel free to contact us.
