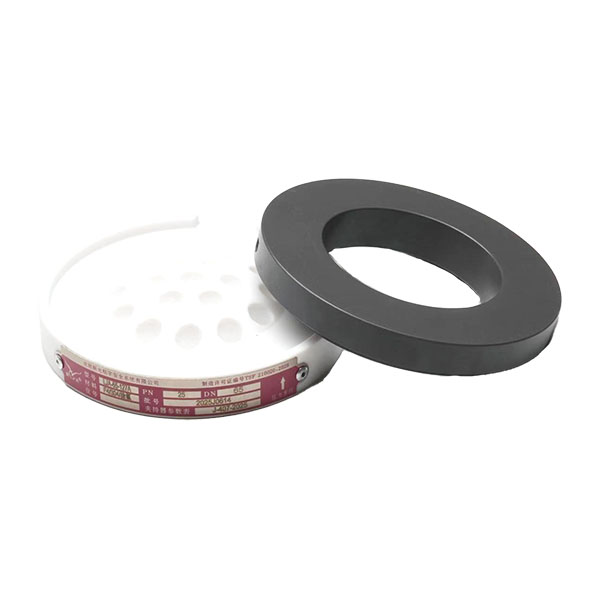

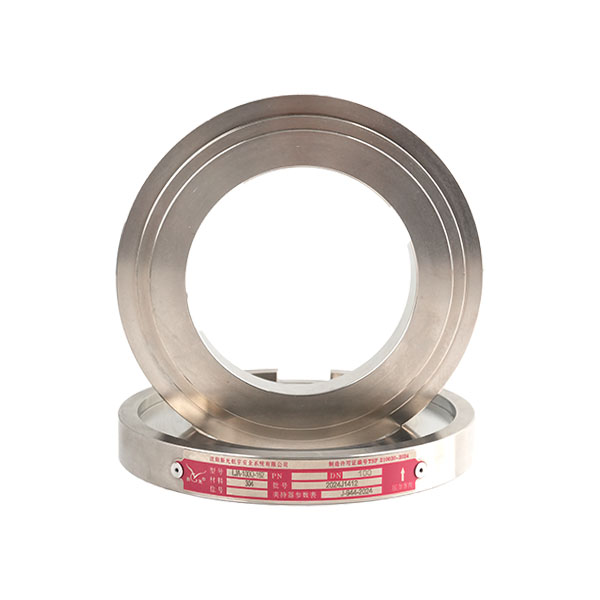

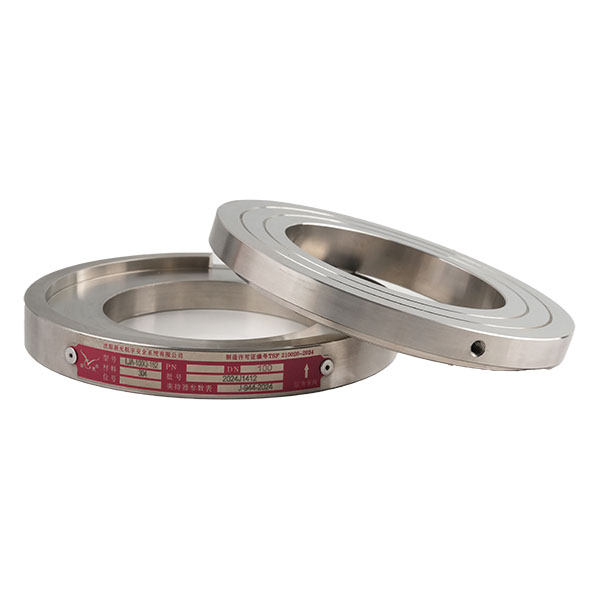

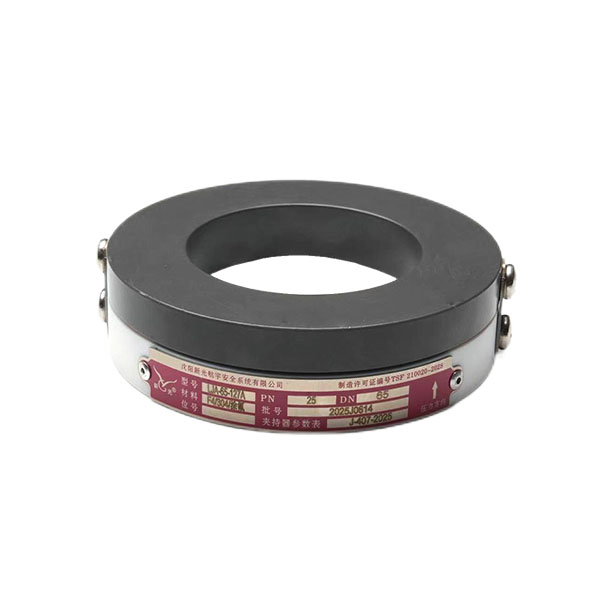

Introduction of Forward acting rupture discs holder:
Rupture disc holder for positive acting discs (Forward acting rupture discs holder) is a special fixture designed for installing positive arch rupture discs. The Forward disc holder has a precise structure and strong sealing performance, and is a key component in the pressure release system. Forward disc holder is widely used in pressure vessels and pipeline systems in the chemical, petroleum, pharmaceutical, metallurgical and other industries. The Forward disc holder and the rupture disc together constitute an efficient and safe overpressure protection device, which quickly releases pressure when the system pressure exceeds the set value to prevent equipment damage or accidents.
Structure and features of Forward acting rupture discs holder:
1. The Bursting disc holder adopts an embedded structure and can be pre-assembled in the workshop to ensure that the rupture disc is not damaged during installation and removal, thereby improving installation efficiency and safety.
2. The design of the Bursting disc holder complies with the international standard flange size, which is convenient for docking with various pressure vessels or pipeline systems and can be installed flexibly.
3. The Bursting disc holder can be made of different materials according to the medium characteristics and working environment. For specific material recommendations and selections, please contact our customer service team for consultation.
Technical advantages of forward acting rupture discs holder:
1. The positioning pin on the clamping surface ensures that the rupture disc is centered and prevents reverse installation.
2. The inlet height of the Rupture disc holder for positive acting discs can protect the arched surface of the rupture disc.
3. The metal hard seal can ensure that the clamping surface is leak-free.
4. The arrow direction on the nameplate of the Bursting disc holder indicates the pressure relief direction of the medium.
5. A pressure monitor can be installed at the outlet of the Bursting disc holder.

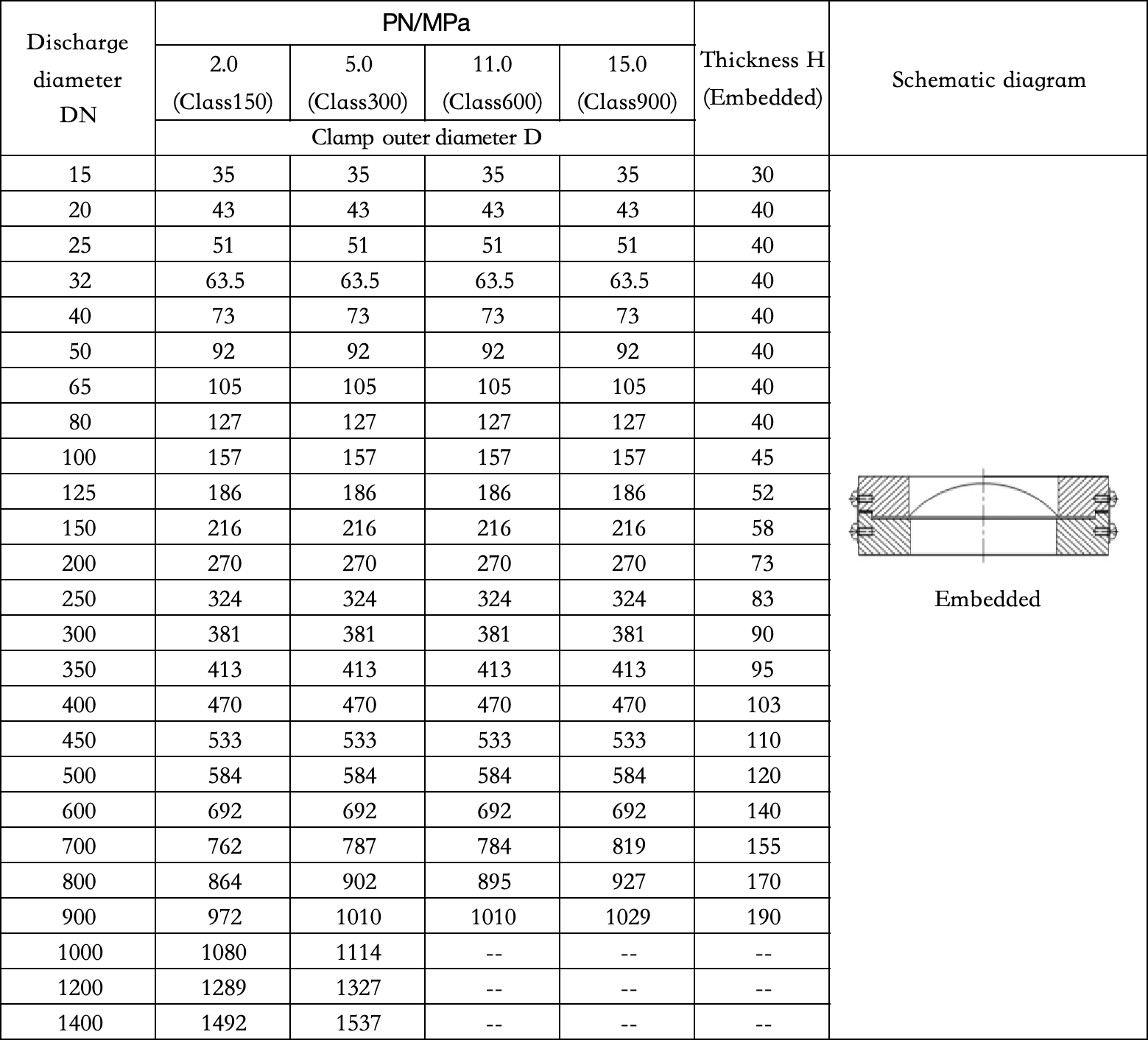

Parameters of Reverse acting rupture discs holders:
mm
FAQ:
1. Can I directly combine the Forward disc holder with the existing rupture disc for use?
Please confirm the flange size. If the two match, they can be used. At the same time, please confirm the thickness of the specialized rupture disc holders and the gasket type to ensure compatibility.
2. How do I choose between PTFE and graphite gaskets?
For corrosive media below 200°C, use polytetrafluoroethylene (PTFE); when high temperatures up to 450°C need to be tolerated, use graphite.
3. What indicators indicate that my bracket needs to be replaced?
Visible corrosion pits, continued high torque requirements, or frequent leaks are all red flags.
4. Do you have your own production plant?
Yes, we produce rupture discs and Bursting disc holders as well as related accessories.
Application of forward disc holder:
Forward disc holders are available with LF, LC, LP, PF and PC rupture discs.
About us:
All Rupture disc holders for positive acting discs need to be visually inspected before leaving the factory to ensure quality of Forward disc holder and no defects.
All Forward disc holder are tested in the factory to ensure performance under specified pressure and temperature.
It is recommended that companies conduct regular inspections when using Rupture disc holder for positive acting discs to ensure equipment safety.
