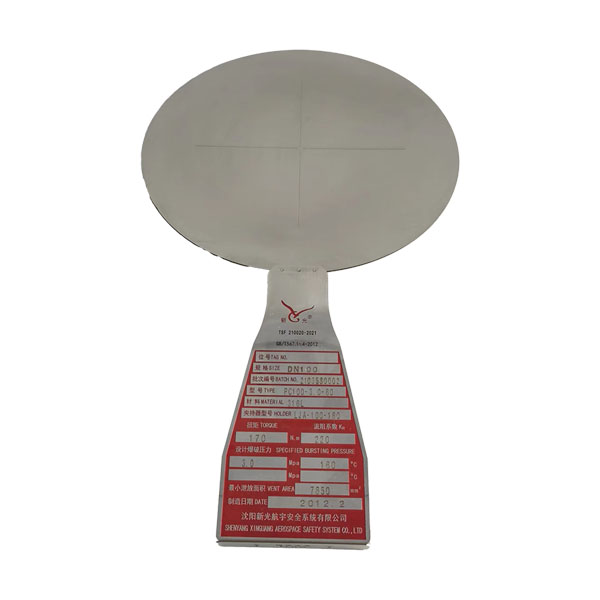

Introduction of PC bursting disc:
Flat seat rupture disc（Flat scored rupture disc） is a single-layer flat diaphragm with a cross groove or annular groove to weaken the strength. It is a pressure release device. Flat seat rupture disc is widely used in pressure vessels, pipelines or systems.
During the project, when the environment reaches the set pressure range, the Flat seat rupture disc ruptures along the groove.
The PC bursting disc is a flat plate with grooves processed on the pressure sensitive element.
Features of PC bursting disc:
1. Low-pressure flat disc is suitable for both gas and liquid media.
2. The working range of low-pressure flat disc is: -40℃ to 260℃.
3. Cross-scored rupture disc has fragments after blasting and cannot be used in series with safety valve
4. Cross-scored rupture disc is suitable for low working pressure requirements;
5. Cross-scored rupture disc is suitable for normal pressure equipment, does not require a clamp, and can be directly installed between equipment flanges.
Flat scored rupture disc adapter holder:
Specifications of PC bursting disc:

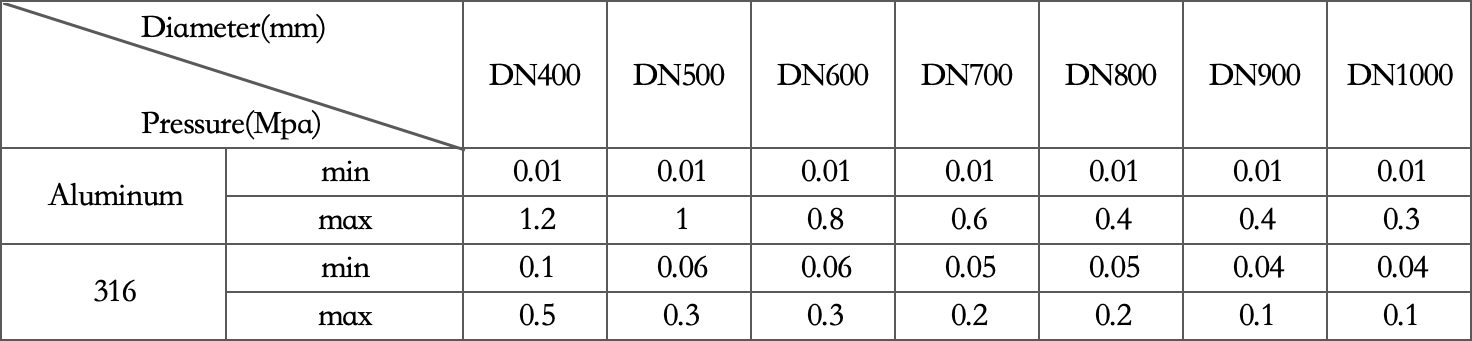

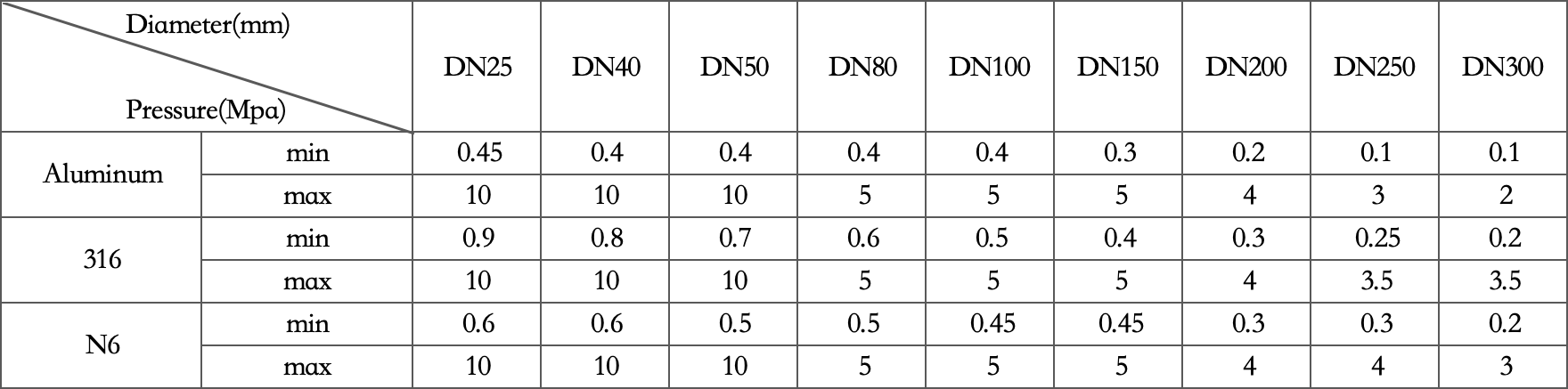

Processable pressure range:
Minimum/maximum burst pressure at 22°.
Unit: Mpa
Notes:
1. The data in the table are for reference only. If the actual design value is different from the data in the table, please consult the manufacturer.
2. If it is other materials, please refer to this parameter table. For special materials, please consult the manufacturer to ensure delivery time.
Application of PC bursting disc:
The Low-pressure flat disc is suitable for normal pressure equipment.

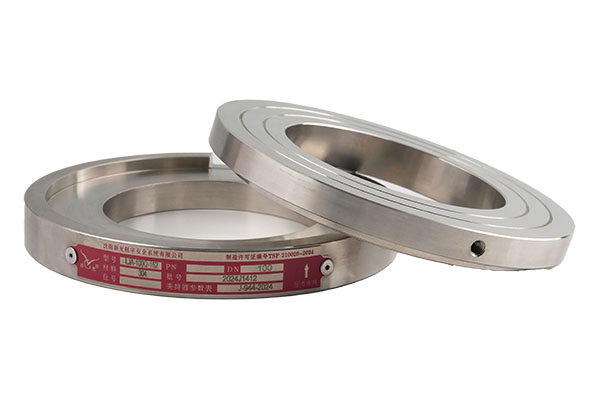

PC type rupture disc adapter holder:
PC适配夹持器图片+链接跳转
About us：
Shenyang Xinguang Aerospace Safety System Co., Ltd. as China's first professional manufacturer of PC bursting disc safety devices integrating R&D, production, sales and service, has always been at the forefront of the industry with precision manufacturing and technological innovation. Since its birth in 1959 in the Xinguang Aerospace Group, the company has relied on its deep aerospace manufacturing background to continuously optimize the production system of Cross-scored rupture disc, improve quality of Low-pressure flat disc, and provide solid guarantees for global safety protection.
We have been focusing on the industry for many years, responsible for the products and customers. Our company has been producing flat rupture discs for many years, has rich experience, a deep understanding of the flat seat rupture disc, and has its own technology of flat seat rupture disc to escort your engineering safety.
