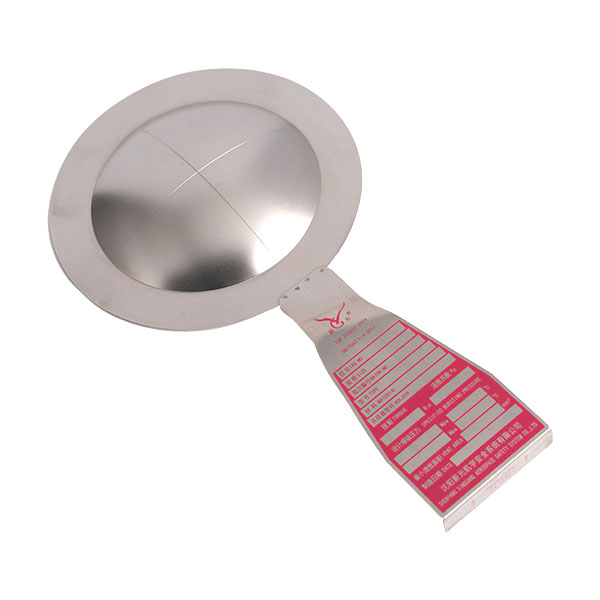

Introduction of LC bursting disc conventional domed scored:
There is a "cross" groove processed on the arch shell of the forward acting rupture disk. Forward acting rupture disk is divided into LCⅠ type (grooving) and LCⅡ type (milling groove) according to the process method. When the protected system is overpressured, the forward acting rupture disk ruptures along the groove to release the pressure.
Advantages of LC bursting disc conventional domed scored:
1. The stainless steel bursting disc rupture disc has a fragment-free design during use and can be used in series with a safety valve.
2. Stainless steel bursting disc rupture disc is suitable for gaseous and liquid media.
3. The maximum working pressure of forward acting scored rupture disc can reach 80% of the minimum allowable bursting pressure.
Specifications of LC bursting disc conventional domed scored:

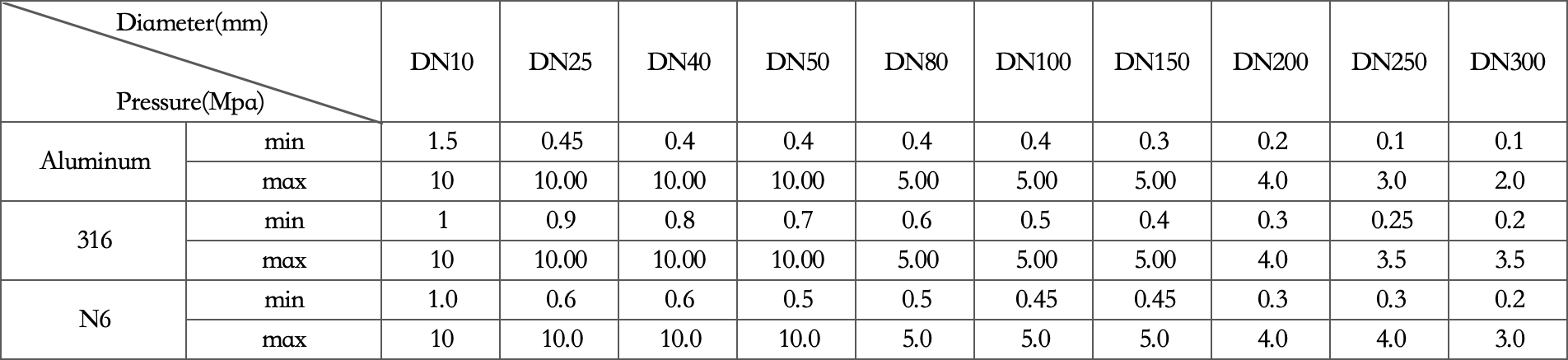

LCI type forward acting scored rupture disc processable pressure range:
Minimum/maximum bursting pressure at 22°.
Unit: Mpa

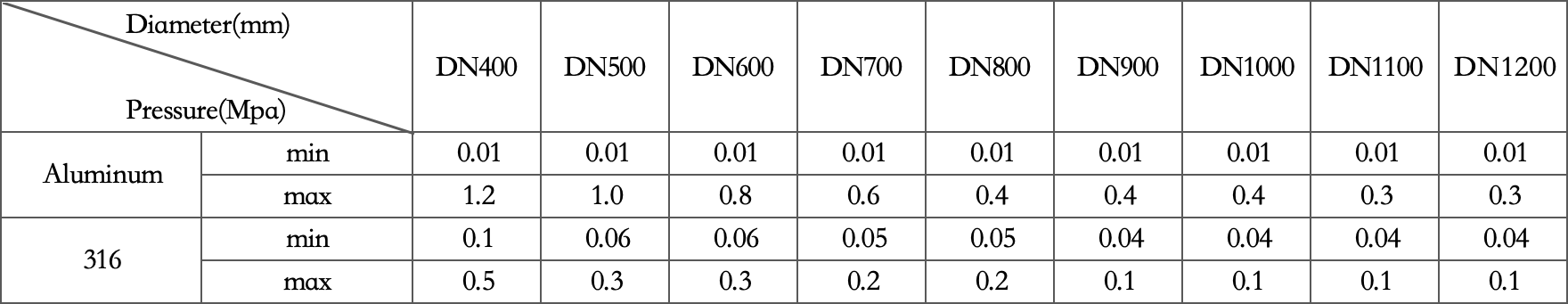

LCII type processable pressure range:
Minimum/maximum bursting pressure at 22°.
Unit: Mpa
Notes:
1、The data in the table are for reference only. If the actual design value is different from the data in the table, please consult the manufacturer.
2、For other materials, please refer to this parameter table. For special materials, please consult the manufacturer to ensure delivery time.
Application of LC type rupture disc:
Forward acting scored rupture disc is suitable for normal pressure equipment.
FAQ:
Q1: What is an LC type rupture disc?
A1: An LC type rupture disc is a one-way bursting and safety pressure relief device, usually installed in a pressure vessel or pipeline. It has a convex arch shape and is suitable for gas or liquid media. When the system pressure exceeds the preset value, the rupture disc will instantly rupture, release the pressure, and protect the system safety.
Q2: What media is the forward acting rupture disc suitable for?
A2: The forward acting rupture disc is suitable for a variety of gases, steam, liquids and other media, especially for non-corrosive, clean or neutral gas conditions. Different materials (such as stainless steel, nickel, Hastelloy, etc.) can be selected to adapt to different chemical media.
Q3: Can the forward acting rupture disk be used repeatedly?
A3: No. This Stainless steel bursting disc rupture disc is a one-time use product and must be replaced with a new rupture disc after blasting.
LC type rupture disc adapter holder:

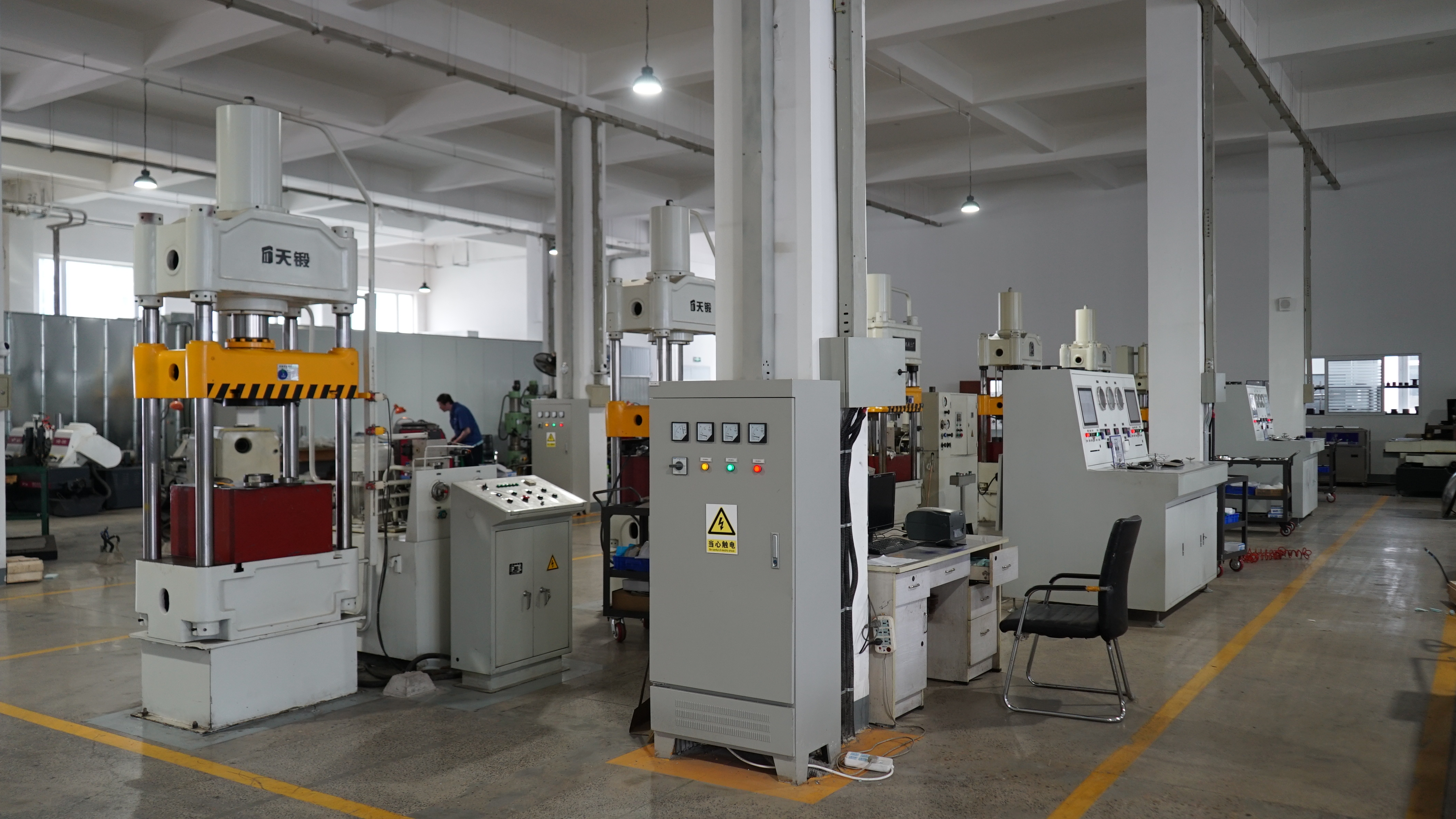

High-end equipment, fine processing:
We have a modern workshop, and the automated precision processing equipment runs at high speed to ensure the precision of each product. The company has specially introduced advanced testing instruments to conduct strict pressure testing, sealing testing and fatigue testing on the products, so that the products are still stable, reliable and durable in extreme environments.
