Introduction of Corrosion Resistant Bursting Discs:
Concave bursting discs are a combination bursting disc device supported by circlips in the holder support ring and lined with a sealing membrane.
Concave bursting discs are a metal reverse arch structure pressure-bearing device designed to burst when compression instability occurs in the pressure-bearing direction. This model of Corrosion Resistant Bursting Discs uses a circlip installation method, which is suitable for standard bursting disc carriers and various gas environments. Corrosion Resistant Bursting Discs are widely used in pressure protection systems in multiple industries such as petroleum, chemical, pharmaceutical, and energy.

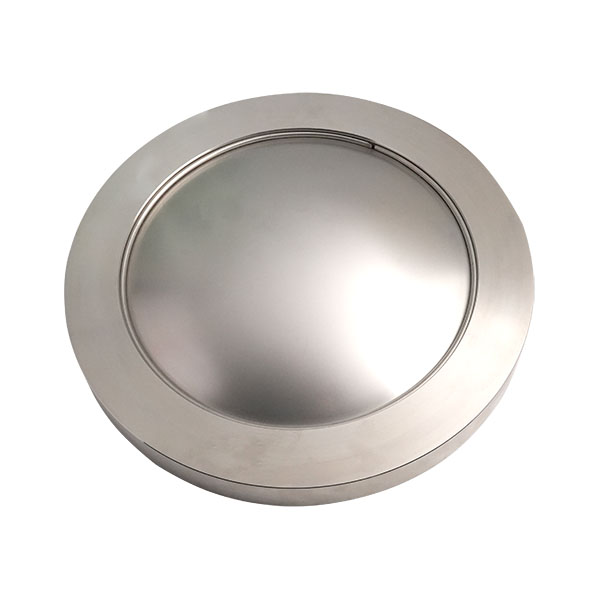

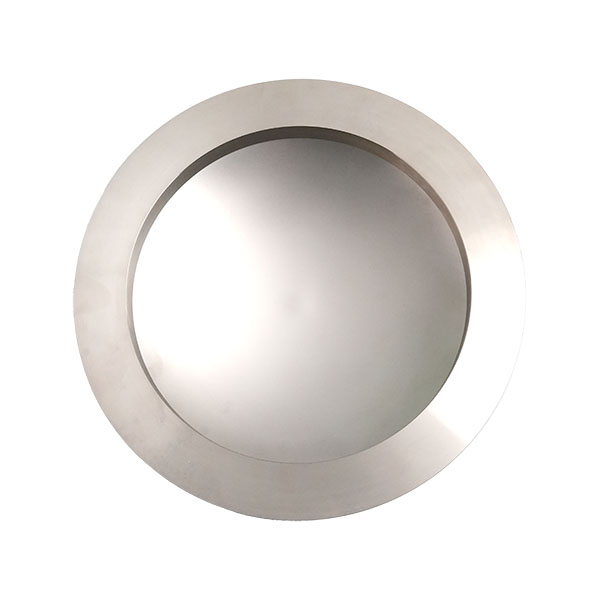

Structure of YK type reverse slotted domed bursting disc:
Reverse arch structure: Under the preset bursting pressure, the center area of the Reverse slotted domed bursting disc instantly reverses and releases the pressure quickly.
Spring installation: The Reverse slotted domed bursting disc is fixed in the holder by an elastic card spring, and the card is installed for induction, with good repeatability.
Features of YK type reverse slotted domed bursting disc:
1. YK type rupture disc is fatigue-resistant and suitable for occasions with pulsating pressure.
2. YK type rupture disc is suitable for the protection of large-caliber and low-pressure systems.
3. YK type rupture disc withstands vacuum back pressure, and a back pressure bracket needs to be added, and its discharge area is about 50% of the nominal diameter.
4. The maximum working pressure of the Concave bursting discs can reach 90% of the calibrated bursting pressure.
5. YK type rupture disc is suitable for gaseous media.
6. YK type rupture disc pops out as a whole after bursting.
7. Concave bursting discs and holder must be assembled by the manufacturer and shipped together.

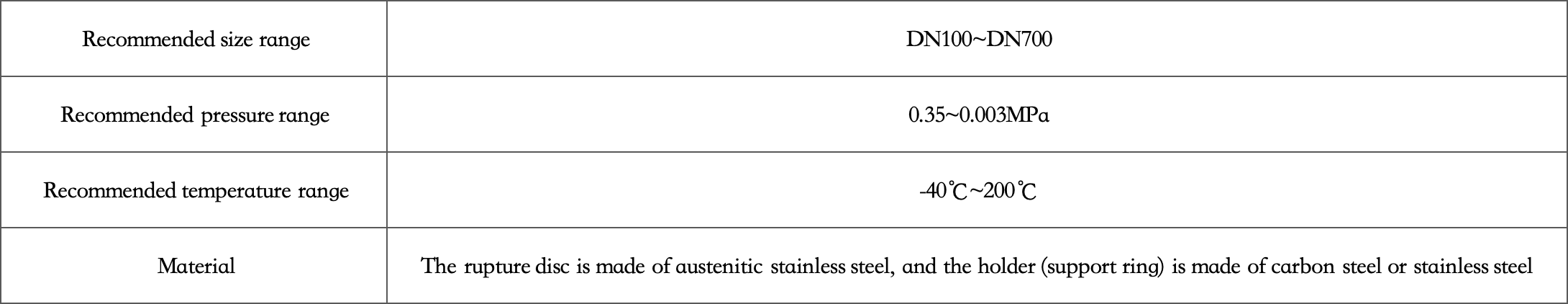

Parameters of YK type reverse slotted domed bursting disc:
About us:
Xinguang has a complete quality management system and passed the ISO9001:2000 quality management system certification in 2001. The products are used in petrochemical, petroleum, chemical, pharmaceutical, food, steel, electricity, environmental protection, natural gas, boiler, air conditioning, tank truck and other industries to produce various types of bursting disc safety devices, and have won the titles of national, ministerial, provincial, high-quality products and national user satisfaction products for many times.

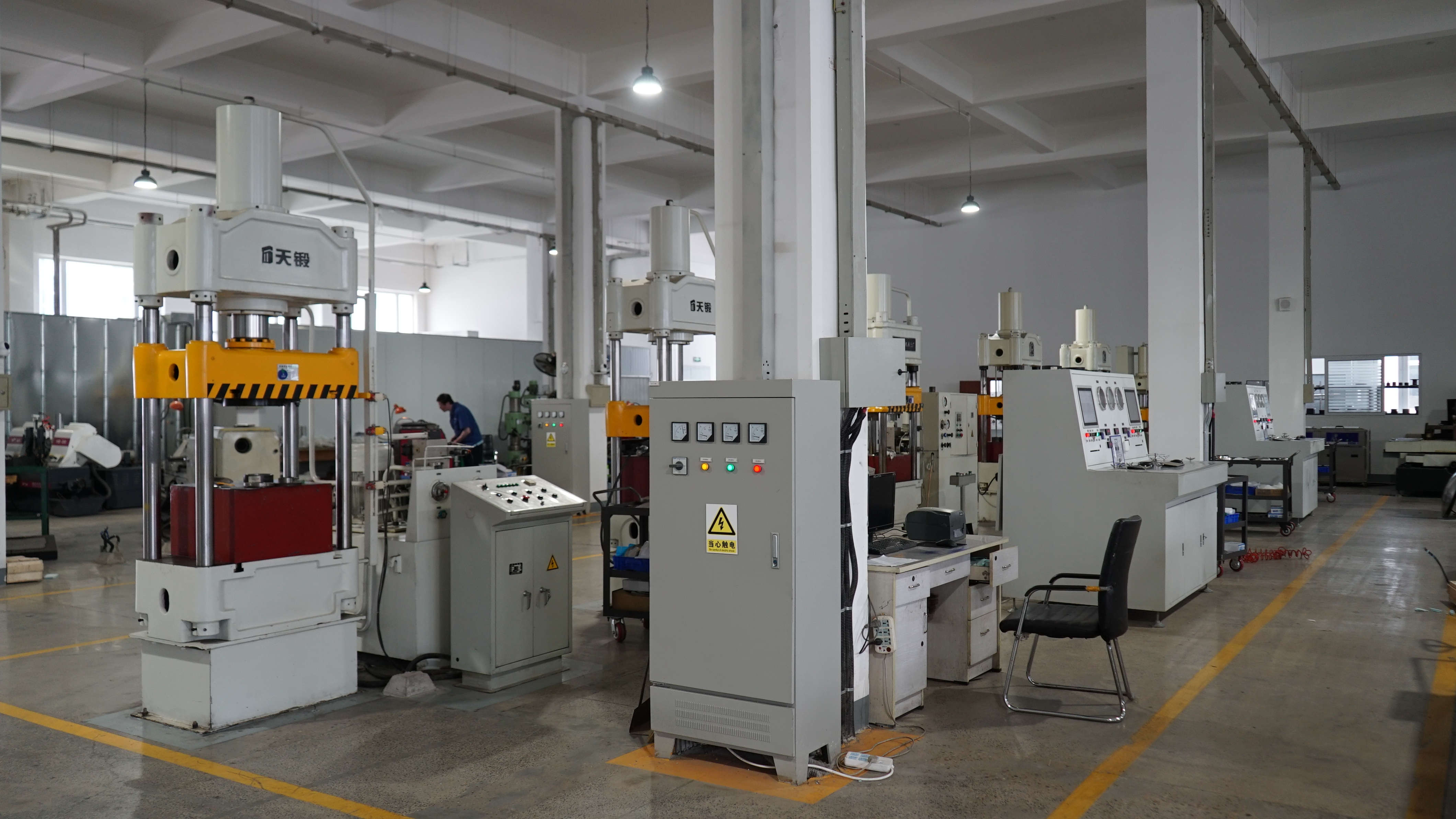

We have a modern workshop, and the automated precision processing equipment runs at high speed to ensure the precision of each product. The company has specially introduced advanced testing instruments to conduct strict pressure testing, sealing testing and fatigue testing on the products, so that the products are still stable, reliable and durable in extreme environments.
