Introduction of rupture discs for pressure relief:

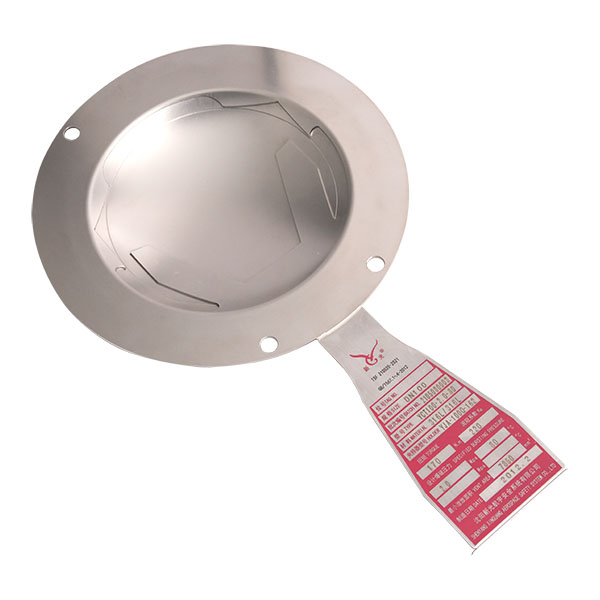

Our c-type reverse buckling rupture disk is composed of a rupture disc arch shell with a c-shaped prefabricated crack groove and a special bracket, so it has a strong ability to control direction and crack guidance. Our precision reverse operating rupture disc can meet the use requirements of high-precision and high-stability working conditions. When the system pressure exceeds the set value, the circular reverse buckling rupture disk will undergo structural reverse deformation and then rupture quickly and stably along the c-shaped groove.
Advantages of stainless steel reverse buckling rupture disk:
1. Our circular reverse buckling rupture disk is manufactured in standard sizes and can be interchanged with the matching clamp.
2. The positioning pin design of rupture discs for pressure relief can make installation more accurate and effectively avoid reverse installation. And it is suitable for all-liquid phase media.
3. The precision reverse operating rupture disc we produce will not produce any metal fragments during use and can be used in series with the safety valve.
Uses of precision reverse operating rupture disc:
Compared with similar products, c-type reverse buckling rupture disk is more suitable for all-liquid phase media. Therefore, stainless steel reverse buckling rupture disk is suitable for use in pressure vessels, hydraulic equipment, medical reaction systems, oil and gas exploration equipment, liquid storage tanks, food and beverage pressurization systems, etc. Rupture discs for pressure relief systems can release more pressure than similar products in the same time.
Technical parameters:

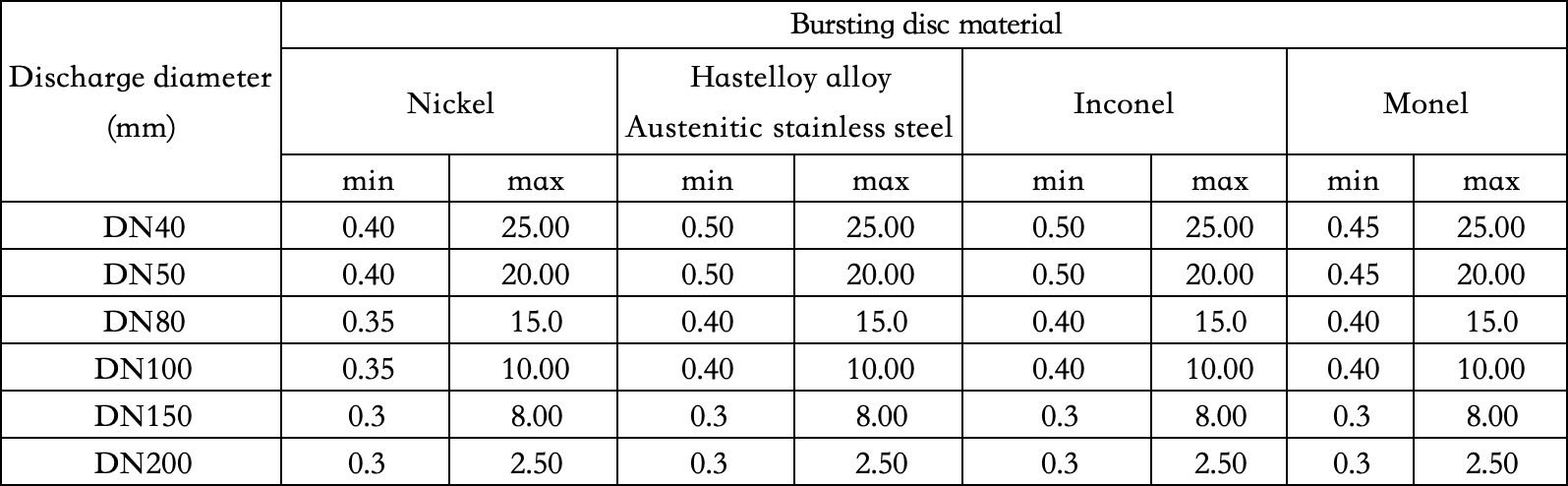

Processable pressure range:
Min./max. bursting pressure at 22°.
Unit: Mpa
Note:
1. The values in the table are for reference only. If the actual values are different, please consult the manufacturer.
2. If polytetrafluoroethylene or polypropylene is required, please pay attention to its operating temperature.
3. The material of the special bracket is generally austenitic stainless steel.
4. The selection of tantalum materials should be consulted with the manufacturer.
Precautions for using precision reverse operating rupture disc:
C-type reverse buckling rupture disk is a one-time use product, but some issues should be paid attention to during use. For example, check whether the sealing surface of the clamp is worn or foreign matter remains, and do not affect the sealing and installation angle. When replacing the circular reverse buckling rupture disk, use the original or compatible model, and check the bracket and positioning pin. Unused stainless steel reverse buckling rupture disks should be stored in a dry, room temperature environment without acid and alkali corrosive gases, and be installed strictly in the direction indicated by the arrow on the product nameplate. It is recommended to check the firmness and sealing of the rupture disc installation before each system startup, which can extend the operating cycle of the circular reverse buckling rupture disk.
FAQ:
1. In which media can rupture discs for pressure relief be used?
Precision reverse operating rupture disc is suitable for gaseous and all-liquid media.
2. Can c-type reverse buckling rupture disk be used with a safety valve at the same time?
Stainless steel reverse buckling rupture disk is designed as a fragment-free structure, so it can be used with safety valves.

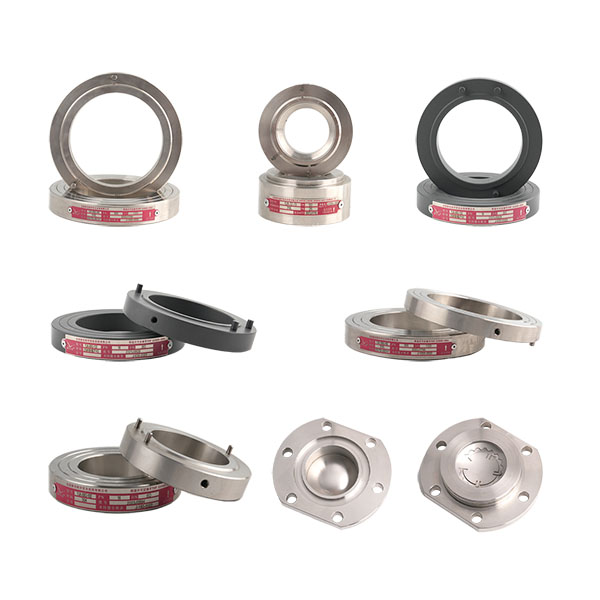

YCT type rupture disc adapter holder:
About us:
Shenyang Xinguang Aerospace Safety System Co., Ltd. was established in 1959 and is affiliated to the Aerospace Xinguang Group, the birthplace of China's aerospace power system. In 1986, it obtained the "bursting disk device production license" issued by the Ministry of Labor. In 2000, the company was recognized as a high-tech enterprise by the Provincial Department of Science and Technology. With strong technical strength, rigorous quality assurance system and advanced equipment, the company has become a well-known brand in the field of safety systems.
